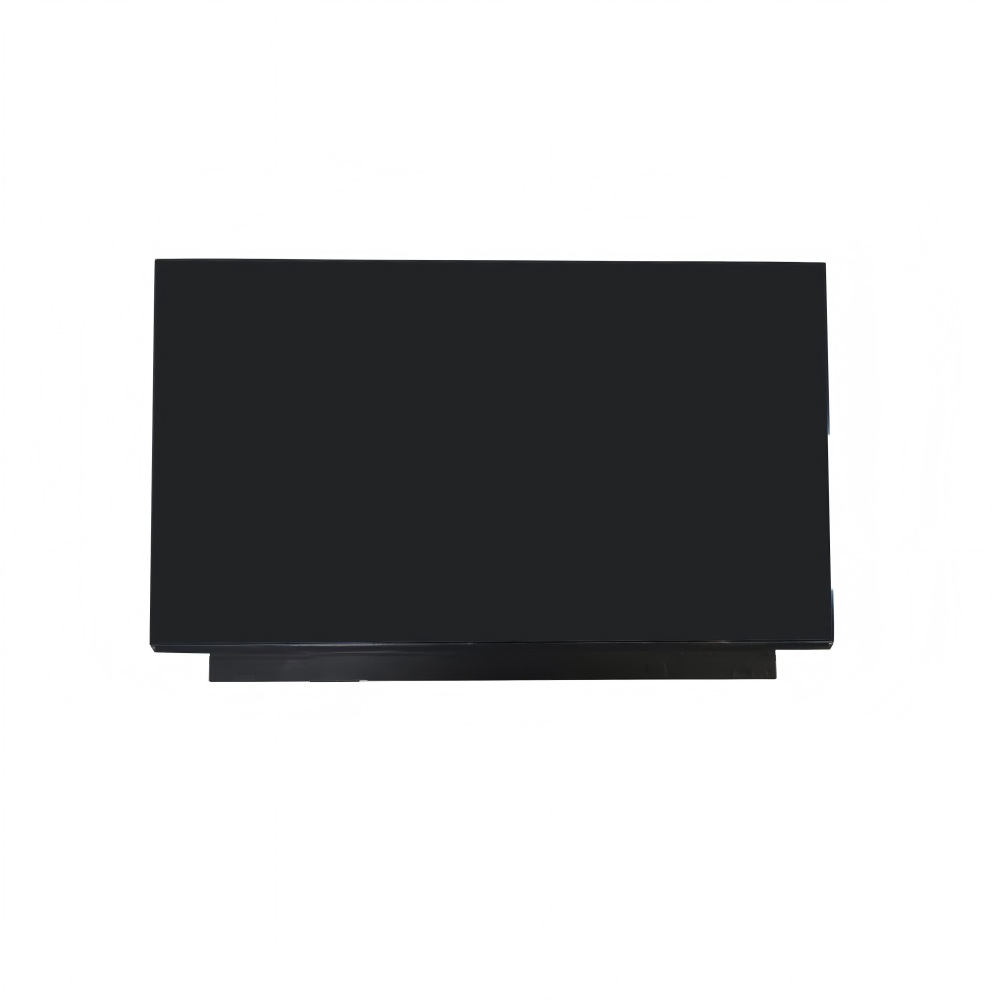

High-Performance 13.3-inch FHD AMOLED Display Module - Samsung ATNA33XC11-0 for Premium Laptops and Tablets

Product Overview: The Pinnacle of Mobile Display Technology

In the rapidly evolving landscape of professional computing and high-end consumer electronics, the display remains the most critical interface between the user and their digital world. The Samsung ATNA33XC11-0 represents a significant leap forward in display engineering, offering a 13.3-inch Full High Definition (FHD) AMOLED panel that redefines visual expectations for notebooks and tablet PCs.

Leveraging advanced Low-Temperature Poly-Silicon (LTPS) Thin Film Transistor (TFT) technology as its switching component, this module delivers unparalleled responsiveness and efficiency. Unlike traditional liquid crystal displays, this AMOLED solution utilizes organic light-emitting diodes that provide their own light source, eliminating the need for a bulky backlight and allowing for an ultra-slim, lightweight profile that is essential for modern portable designs.

Key Features and Visual Excellence

1. Immense Color Depth and Precision

The ATNA33XC11-0 is engineered for creators, photographers, and video editors who demand absolute color fidelity. Capable of displaying up to 1,074 million colors (10-bit depth), this panel ensures smooth gradients and a spectrum of hues that traditional 8-bit panels simply cannot match. Whether you are grading a cinematic sequence or designing complex graphics, the depth of color provides a level of realism that brings every pixel to life.

2. Infinite Contrast and True Blacks

One of the most striking advantages of the AMOLED technology found in the ATNA33XC11-0 is its exceptional contrast ratio, typically rated at 100,000:1. Because each pixel can be turned off completely, the "true black" levels are absolute, allowing for a dynamic range that makes highlights pop and shadows reveal every hidden detail. This high contrast performance is crucial for immersive entertainment and professional dark-room workflows.

3. Rapid Response and Fluid Motion

With a response time of just 1ms (sum of rise and fall times), the ATNA33XC11-0 eliminates motion blur and ghosting. This makes it an ideal choice for high-speed content, from fluid scrolling through long documents to smooth video playback and responsive touch interactions. The 60Hz frame frequency further stabilizes the viewing experience for consistent daily use.

4. DCI-P3 Professional Color Gamut

Meeting the rigorous standards of the film industry, this display supports the DCI-P3 color space. This wider color gamut ensures that the reds and greens are more vibrant and accurate, providing a cinematic viewing experience that aligns with the artistic intent of modern content creators.

Detailed Technical Specifications

Understanding the technical foundations of the ATNA33XC11-0 is vital for successful hardware integration. Below are the comprehensive specifications derived from the official engineering documentation.

General Information

Mechanical Dimensions

The physical footprint of the module is designed for the slim-bezel trend in modern industrial design.

• Module Width: 297.46 mm (Typical)

• Module Height: 184.49 mm (Maximum)

• Module Thickness: 1.627 mm (Panel Area) to 2.115 mm (PCB Area)

• Weight: Maximum 140 grams

Electrical Characteristics

Efficiency is at the heart of the ATNA33XC11-0. The module operates with a standard system voltage and optimized panel power consumption.

• System Supply Voltage (VDD_3.3V): 3.3V (Typical)

• Panel Supply Voltage (VBAT): 6.0V to 21.0V range

• Power Consumption (Full White): Approximately 5.58W at maximum settings

Advanced Connectivity: eDP 1.4b Interface

The ATNA33XC11-0 utilizes the Embedded DisplayPort (eDP) version 1.4b interface. This modern standard is preferred for its high bandwidth and low power consumption.

• Main Link Receiver: Supports high-speed data transmission at 2.7 Gbps.

• Connector Type: 30-pin IPEX 20455-030E-0 (Locking type), ensuring a secure and reliable connection within the device chassis.

• Signal Integrity: Features differential termination resistance of 100 ohms for stable signal paths.

Reliability and Environmental Durability

To ensure long-term performance in various global climates, the ATNA33XC11-0 has undergone rigorous reliability testing:

• High Temperature Operating Life (HTOL): 70°C for 240 hours.

• Low Temperature Operating Life (LTOL): -20°C for 240 hours.

• Thermal Cycling: 100 cycles from -40°C to 85°C.

• Storage Temperature: Wide range from -40°C to 85°C.

• ESD Resistance: Rated for ±9kV contact and ±10kV air discharge (Non-operating).

These tests guarantee that the module can withstand the stresses of everyday transport and operation in diverse environments, from freezing winters to humid tropical climates.

Optimized Applications

While primarily designed for Premium Notebook PCs and High-End Tablet PCs, the versatility of the ATNA33XC11-0 makes it suitable for a variety of specialized applications:

• Creative Professional Laptops: Where color accuracy and DCI-P3 support are mandatory.

• Ultra-Thin Ultrabooks: Utilizing the 1.6mm thickness to achieve record-breaking device thinness.

• Industrial Handhelds: Where high brightness (400 nits) and wide viewing angles (85 degrees) are required for field use.

• Medical Imaging Portables: Benefit from the high contrast and detailed color reproduction for diagnostic clarity.

Handling and Installation Guidelines

Given the sophisticated nature of AMOLED technology, Samsung recommends strict adherence to handling protocols to maintain panel integrity:

1. Mounting and Protection

The module consists of two slim glass layers with polarizers that are susceptible to physical damage. It should be fixed using the designated fitting holes on the PCB. Avoid applying localized pressure to the panel surface during assembly, as this may cause "image sticking" or permanent optical distortion.

2. Cleaning Procedures

To maintain the glare surface treatment:

• Recommended Solvents: Isopropyl alcohol or Ethyl alcohol.

• Prohibited Solvents: Water, Ketones, or Aromatics, which can damage the polarizer.

• Use a soft, lint-free cloth and wipe gently in a single direction.

3. Static Charge Precautions

The C-MOS LSI drivers are sensitive to static electricity. Operators should use grounded wrist straps, and assembly areas should be equipped with anti-static mats. Always ground the body and equipment before handling the module.

Why Choose the ATNA33XC11-0 for Your Project?

Selecting the right display is a balance between performance, reliability, and form factor. The Samsung ATNA33XC11-0 offers a "no-compromise" solution:

• Samsung Quality: Built by the world leader in AMOLED technology.

• Future-Proof Specs: 10-bit color and eDP 1.4b connectivity ensure compatibility with the latest graphics processors.

• Efficiency: Optimized power consumption profiles extend the battery life of portable devices.

• Design Freedom: The incredibly thin and light construction allows industrial designers to push the boundaries of device aesthetics.

Contact Us for Inquiries and Bulk Pricing

As a specialist provider of high-quality display modules, we offer comprehensive support for the Samsung ATNA33XC11-0. Whether you are in the prototyping stage or moving toward mass production, our team is ready to assist with technical documentation, interface consulting, and competitive volume pricing.

Partner with us to bring world-class visual experiences to your customers.

How to Order:

1. Request a Quote: Submit your required quantity and project timeline.

2. Technical Support: Our engineers can provide detailed pinout diagrams and power-on sequence consultation.

3. Global Shipping: Secure packing in original Samsung trays ensures your panels arrive in perfect condition.

Don't settle for standard displays when you can offer AMOLED excellence. Send your inquiry today to receive a detailed quotation and lead time estimate!
