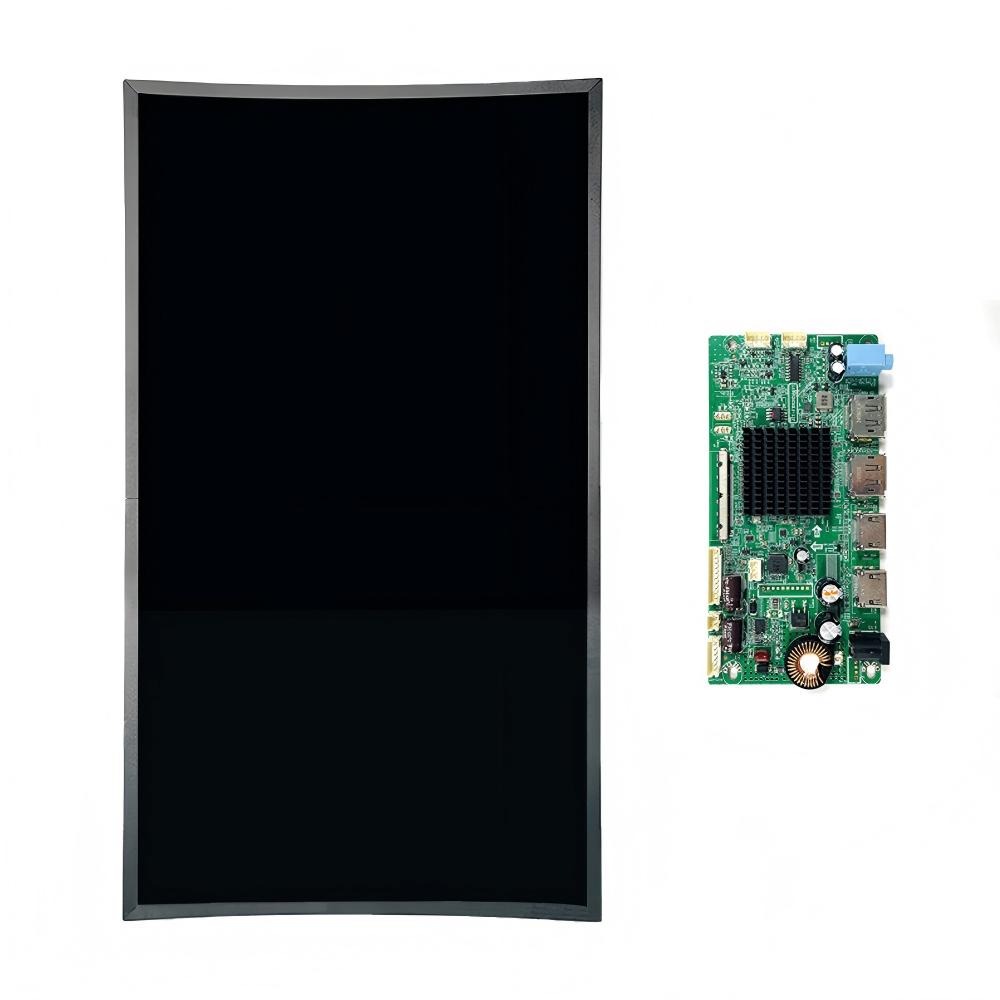

32 Inch Curved LCD Module – Optimized for Compact Gaming Systems

This 32-inch curved LCD module is engineered for applications that require a balance between immersive display performance and compact mechanical design. With a QHD resolution of 2560×1440 and an R1000 curvature, it is particularly suitable for gaming machines, arcade cabinets, and other embedded display systems where viewing distance is relatively short.

The module integrates an eDP interface for stable high-speed signal transmission and supports a brightness level of 500 nits, ensuring clear visibility in controlled indoor environments.

Key Features

• 32-inch curved LCD panel with R1000 curvature
• 2560×1440 (QHD) resolution for balanced clarity and performance
• eDP interface for high-speed signal transmission
• 500 nits brightness for indoor applications
• Designed for close viewing distance (0.8–1.2m)
• Suitable for custom integration in compact cabinets

Product Specifications

Application Scenarios

This 32-inch curved LCD module is commonly used in:

• Arcade gaming cabinets
• Simulator control panels
• Multi-display gaming systems
• Embedded industrial display equipment

Compared to larger sizes such as 43-inch or 49-inch modules, the 32-inch format is more suitable for systems with limited installation space while still providing a curved visual experience.

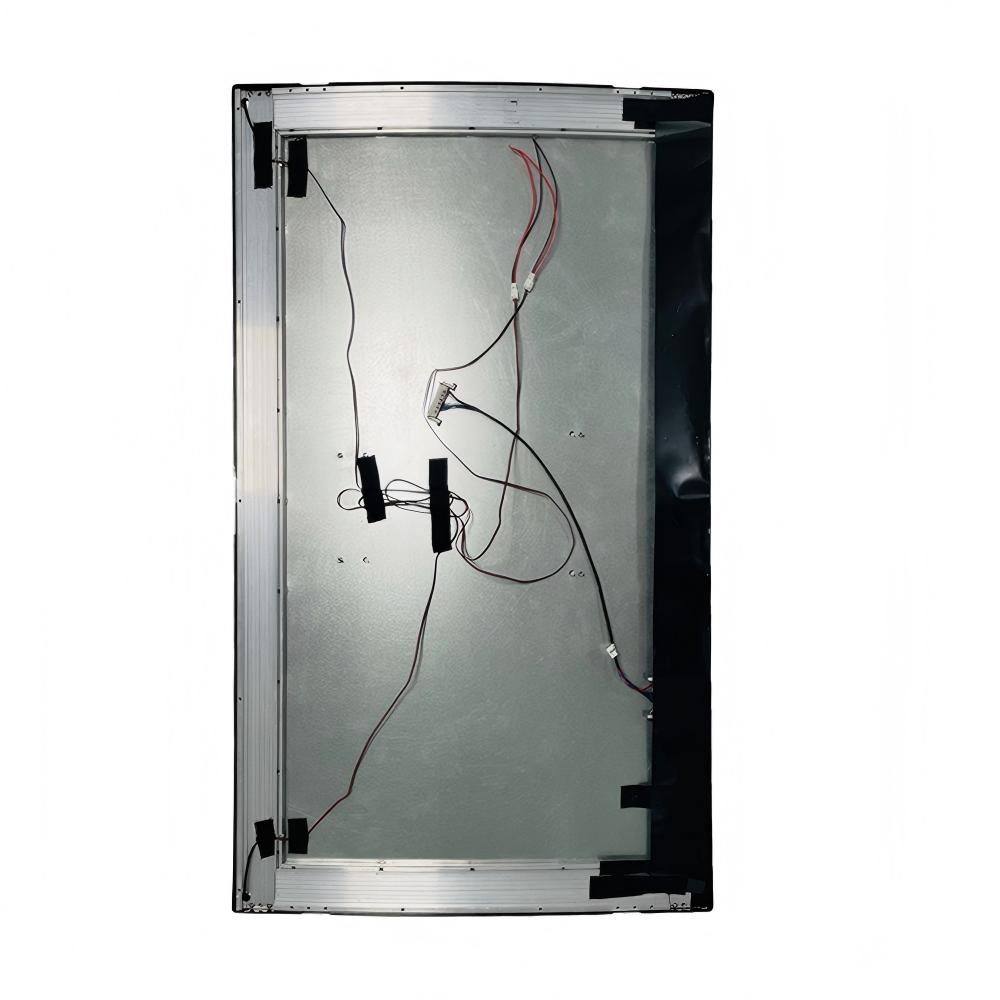

Mechanical & Integration Considerations

Curved Structure Design

The R1000 curvature is optimized for close-range viewing, making it ideal for seated users. When integrating the module, it is recommended to design a matching curved frame or bezel to ensure proper alignment and stress distribution.

Interface Integration

The module uses an eDP interface, which requires a compatible controller board or industrial PC. Proper cable shielding and stable power input are recommended to ensure signal integrity.

Thermal Management

For enclosed cabinet designs, heat dissipation should be considered. Passive ventilation or low-noise fan systems can help maintain stable operation.

Customization Options

This curved LCD module supports a range of customization options to meet specific project requirements:

• Brightness enhancement (high brightness versions)
• Touch panel integration (PCAP or resistive)
• Cover glass (custom GG5 cover glass)
• Interface conversion (HDMI / LVDS via driver board)
• Wide temperature design

Why Choose a 32-Inch Curved LCD Module?

A 32-inch curved display offers a practical balance between size and usability:

• Easier integration into compact systems
• Lower power consumption compared to larger displays
• Optimized pixel density for typical viewing distance
• Suitable for cost-sensitive projects

Frequently Asked Questions

Can this 32 inch curved LCD module support touch functionality?

Yes. This module can be integrated with touch solutions such as PCAP (projected capacitive) or resistive touch panels depending on the application requirements.

What controller board is required for this display?

The module uses an eDP interface. It requires a compatible controller board or industrial PC. HDMI or other input signals can be supported via a driver board.

Is the brightness adjustable or customizable?

Yes. The standard brightness is 500 nits, but higher brightness options are available for specific applications.

What is the typical viewing distance for an R1000 curved display?

The R1000 curvature is designed for close viewing distances, typically between 0.8 and 1.2 meters, making it ideal for compact gaming systems.

Can this module be used in industrial environments?

Yes. With customization such as wide temperature design and enhanced durability, it can be adapted for industrial applications.

Is mechanical customization available?

Yes. The module supports customization including mounting structure, cover glass (custom GG5 cover glass), and overall integration design.
