32 inch 1920x1080 C Shape 51PIN 500nits Curved LCD Module Back to list

Description:

►Model:DBT320DHN51L050A-C
►Size:32 inch
►Resolution:1920x1080 dots
►Active Area:698.4x392.85mm
►Outline Dimension:725.2x422.7x59.09mm
►Interface:LVDS 51PIN
►Brightness:500cd/m²
The 32-inch 1920×1080 C-shape curved LCD module offers Full HD resolution, 500 nits brightness, R1500 curvature, and 51-pin LVDS interface for industrial use.

Inquire

32-Inch R1500 Curved LCD Module for Gaming Cabinets and Interactive Entertainment Systems

Overview

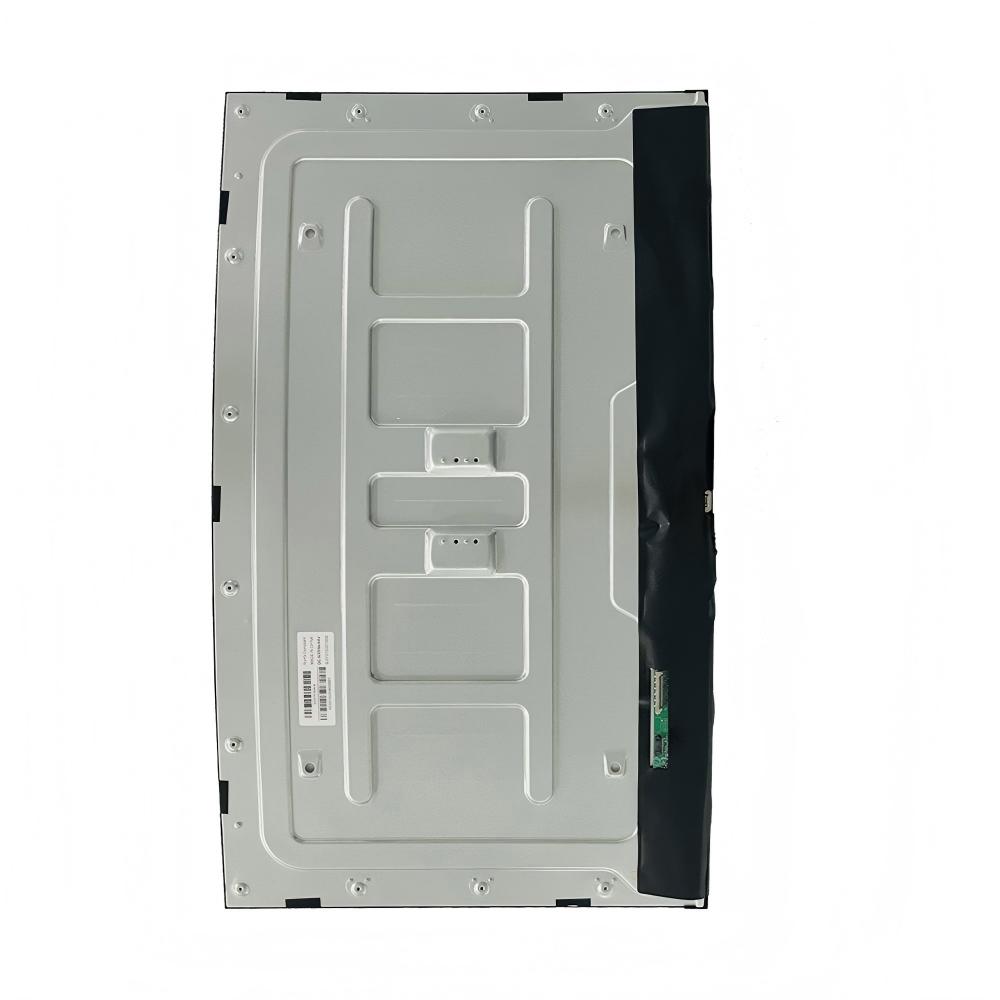

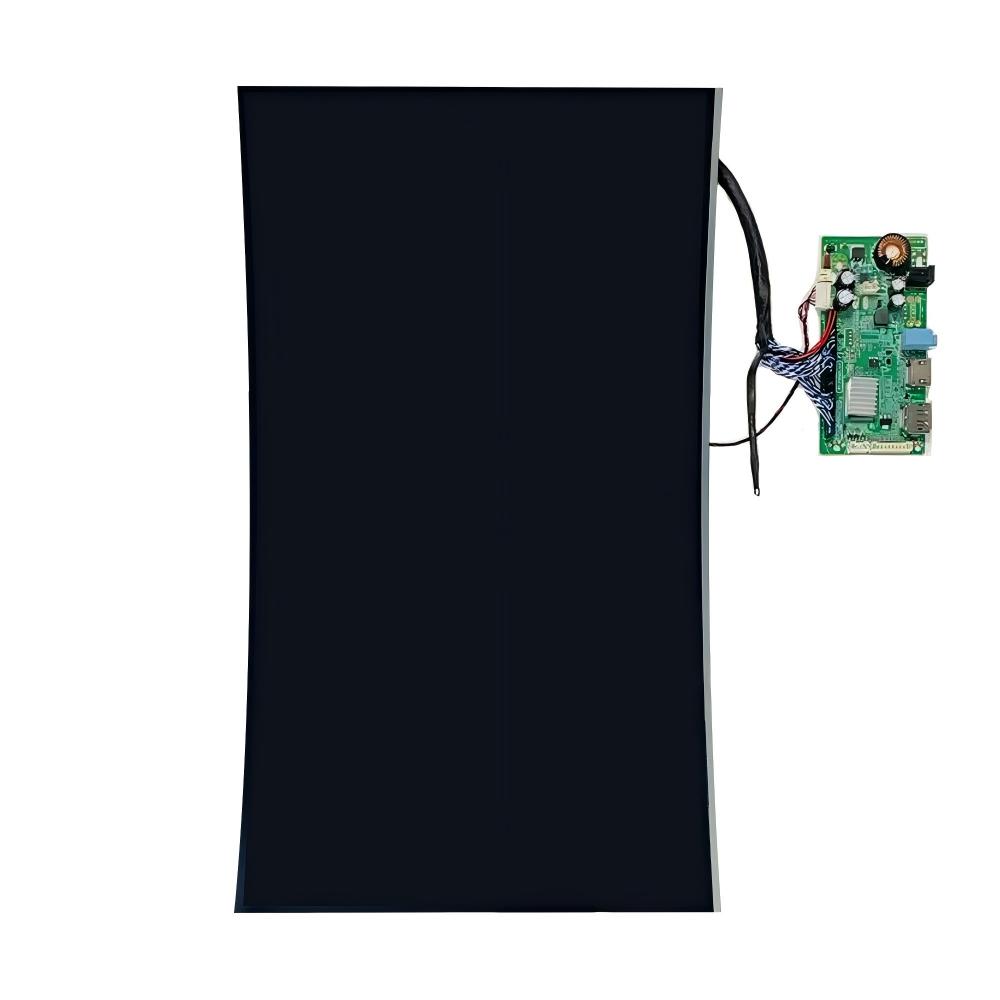

The DBT320DHN51L050A-C is a 32-inch curved TFT-LCD module designed for professional gaming cabinets and interactive entertainment systems. With Full HD resolution (1920 × 1080) and an R1500 curvature, this display provides an immersive visual experience while maintaining high clarity and color accuracy.

Its anti-glare surface treatment ensures readability in brightly lit environments, while the dual-channel 51-pin LVDS interface guarantees stable signal transmission for seamless integration into various gaming and interactive systems.

This module combines performance, durability, and ergonomic design to meet the demanding requirements of modern entertainment equipment.

Key Features

R1500 Curved Design: Optimized for immersive viewing in close-range interactive environments.
Full HD Resolution: 1920 × 1080 with 16.7 million colors ensures sharp and vibrant graphics.
Anti-Glare Coating: Reduces reflections under strong indoor lighting.
Industrial-Grade Reliability: Supports stable operation from 0°C to +50°C.
Stable LVDS Interface: Dual-channel 51-pin LVDS for reliable high-speed signal transmission.

Technical Specifications

Parameter	Specification
Model Name	DBT320DHN51L050A-C
Screen Size	32-inch (31.5″ diagonal)
Resolution	1920 × 1080 (Full HD)
Active Area	698.4 × 392.85 mm
Outline Dimensions	725.2 × 422.7 × 59.09 mm
Brightness	500 cd/m²
Contrast Ratio	1500:1 (Typ.)
Response Time	14 ms
Color Depth	16.7M colors (8-bit RGB)
Interface	Dual-channel LVDS, 51-pin
Input Voltage	12 V
Operating Temperature	0°C to +50°C
Storage Temperature	−20°C to +60°C

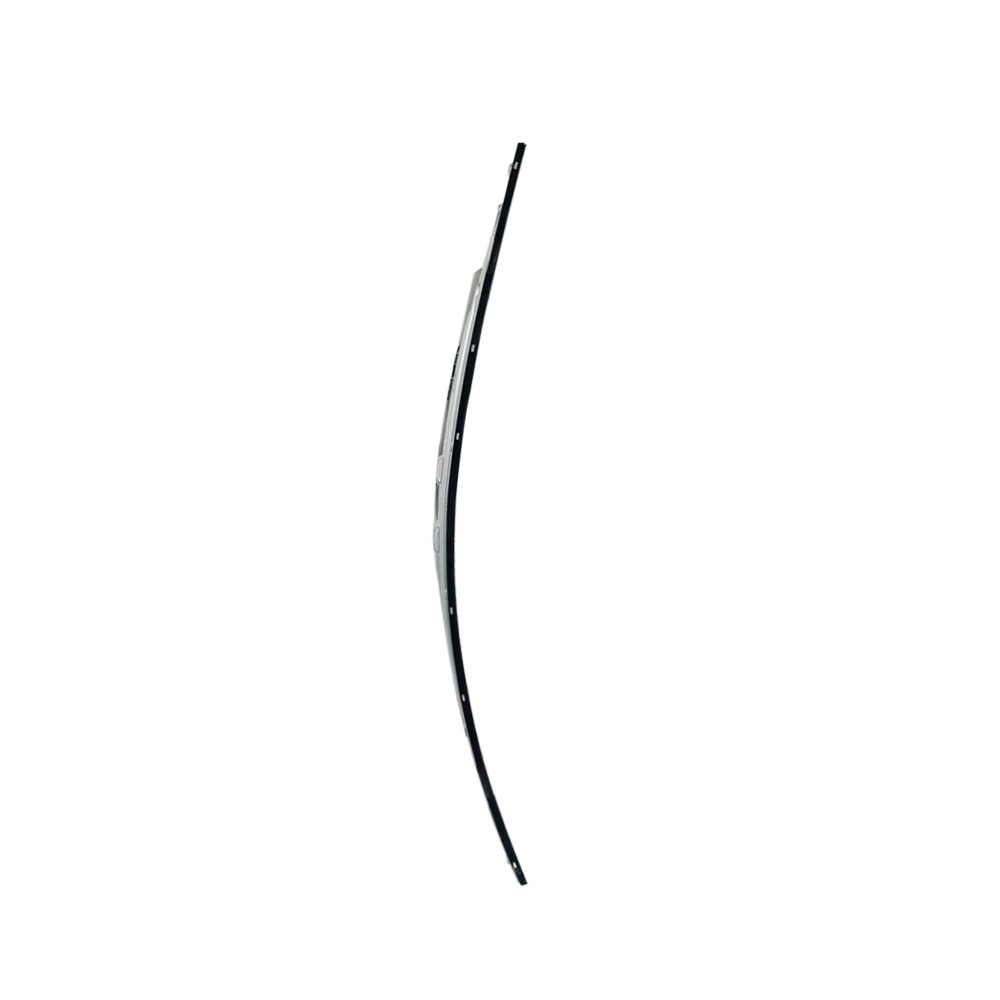

Curvature	R1500

Application Scenarios

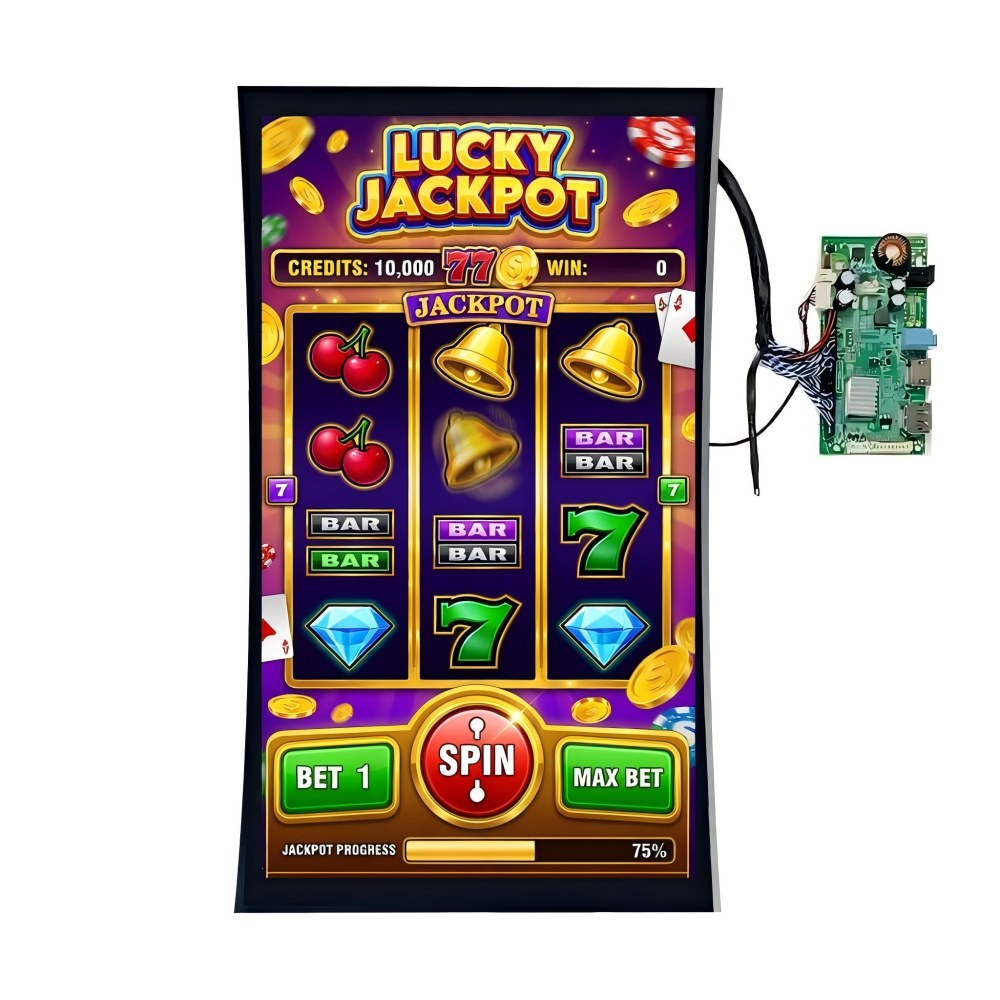

Gaming Cabinets

The module is ideal for interactive gaming cabinets where immersive visual experiences are required. Its curved design improves peripheral visibility and contributes to a more engaging display environment.

Arcade and Entertainment Machines

Designed for arcade and entertainment equipment, the module delivers high-resolution visuals and smooth motion rendering for interactive gameplay.

Simulation Systems

The curved display can also be integrated into simulation or training systems, offering a wrap-around view that enhances realism and user engagement.

Player Interface Displays

This LCD module can be used for system information or content displays integrated into entertainment hardware, ensuring clear readability and consistent performance.

Integration and Design Advantages

Mechanical Flexibility: Supports innovative cabinet and enclosure designs.
Electrical Stability: LVDS interface ensures high-speed signal transmission with minimal distortion.
Power Efficiency: 12V operation with low consumption, suitable for continuous usage.
Durable Construction: Long-term reliability in commercial entertainment applications.

FAQ

Q: What is the curvature of this LCD module?
A: It features an R1500 curvature designed to optimize immersive viewing for interactive systems.

Q: What interface does this display use?
A: Dual-channel 51-pin LVDS interface for stable, high-speed signal transmission.

Q: Can this display be used in arcade machines?
A: Yes. The module is ideal for arcade gaming cabinets and other interactive entertainment systems.

Q: What is the operating temperature range?
A: 0°C to +50°C, suitable for standard indoor commercial environments.

Q: Is the brightness sufficient for high-ambient-light rooms?
A: Yes, with 500 cd/m² and anti-glare treatment, the display remains clear in brightly lit environments.

Q: Can the module be customized?

A: Custom options include brightness adjustment, interface configuration, and optional GG5 cover glass for enhanced durability.
